KSM quick assembly expansion bolt T-shirt: ¸10x180mm, nail: ¸6.8x186mm (5906365349226)

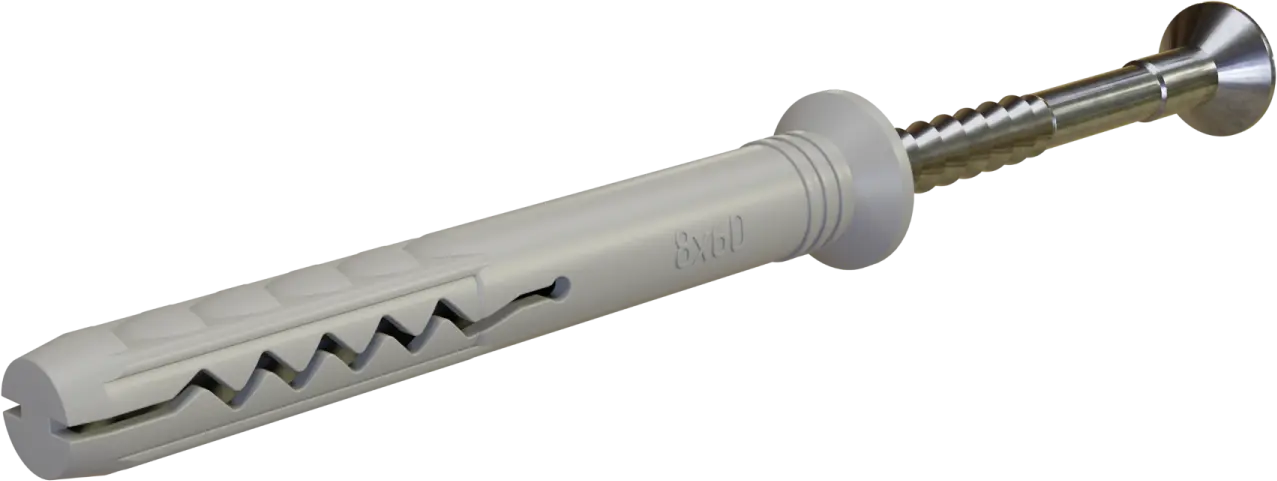

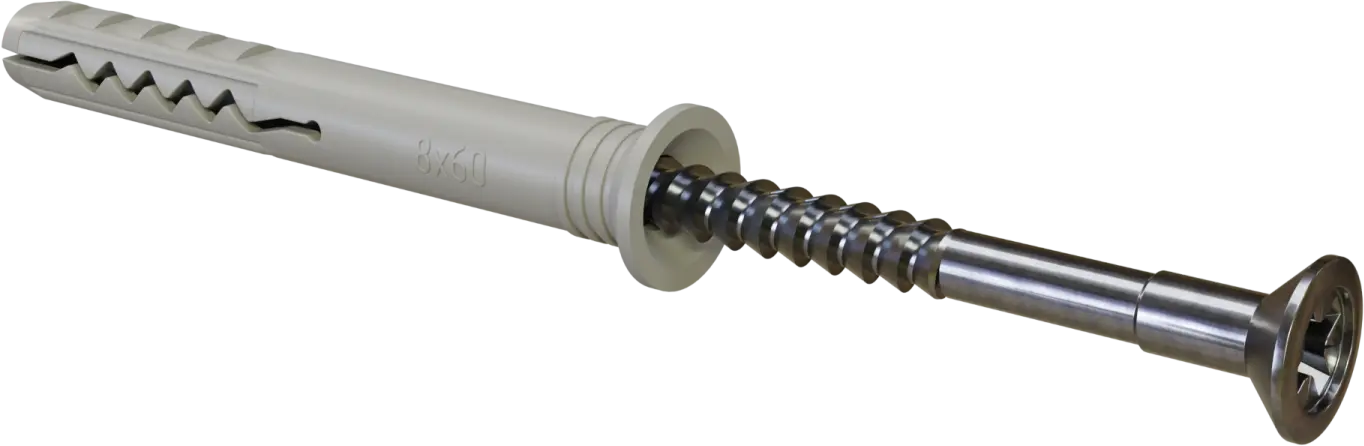

The quick-installation expansion plug is one of the most popular fastening plugs. It consists of a polypropylene sleeve and a galvanized steel nail.
The expansion plug is used for almost any job requiring quick installation. It is suitable for fastening finishing strips, mounting brackets for plumbing and electrical installations, and many others. It can be set in solid substrates such as concrete or brick, in holes of the appropriate diameter.
Its shape ensures a stable fit in the hole and strong expansion after inserting the nail. The design of the steel nail head allows for very quick insertion into the sleeve and creates a durable fastening. The plug is available in a wide range of sizes, making it easy to match it to the type of work being carried out.
FEATURES:

• Quick installation thanks to hammer-in installation
• The sleeve is made of polypropylene plastic
• The nail is covered with a layer of electroplated zinc
• A wide range of sizes and diameters ensures correct fastening for each solution
• The use of a PZ2 tip and thread allows for removal of the nail, facilitating disassembly

PRODUCT MATERIAL:
Polypropylene sleeve, electroplated steel nail.
APPLICATION:
For solid building materials such as: regular concrete C20/25, solid ceramic brick class 15, solid silicate brick class 15.
Example of use:
The mounting element is used for mounting wooden profiles, skirting boards, mounting brackets for sanitary and electrical installations, and structural elements used in interior drywall technology.
TECHNICAL DATA:
sleeve: fi6x40mm; nail: fi3.8x44mm
